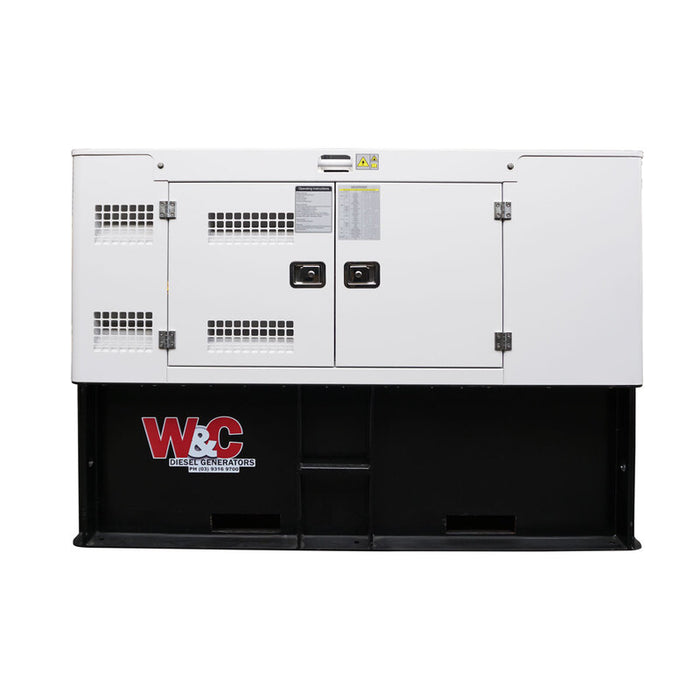

Welling & Crossley 18KVA Diesel 1/3 Phase Generator (Kabota Engine)

The Kubota powered ED18KYE-400 is a 18kVA single phase standby diesel generator. Complete with Crossley SLG series single bearing, 4-pole, brushless alternator, remote start/stop control system, 400 litre fuel tank, weather protective acoustic canopy and Kubota engine. Welling and Crossley Kubota powered generating sets are fully integrated power generation systems that are stringently tested to provide optimum performance, reliability, and versatility for standby applications

Alternator

Alternator Model: Crossley
Electric Power: Single Phase
Active Rating: 18 kVA at 0.8 pf (Standby)
Power: 14.4 kW
Voltage: 240V
Frequency: 50Hz

Engine

Engine Model: Kubota D1803-M
Engine Speed: 1500 rpm
Cylinder No.: 3
Cubic Capacity: 1.826 L
Bore / Stroke: 87 x 92.4 mm
Compression Ratio: 16 : 1
Aspiration: Natural
Starter Voltage: 12V
Flywheel ( Max. Continuous Power): 19 kW
Combustion Air Flow: 1.6 m³/min
Cooling Air Flow: 55 m³/min
Cooling System: Radiator Cooled
Heat Rejection to Cooling System: 17 kW
Exhaust Gas Flow: 4.8 m³/min
Exhaust Gas Temperature: 550°C
Fuel Type: Diesel
Fuel Tank Capacity: 400 L
Approx. Fuel Consumption (Continuous): 5.13 L/hr
Approx. Fuel Consumption (Standby): 5.7 L/hr

Generator

Dimensions (L x W x H): 2000 x 900 x 1580 mm (L x W x H)
Weight: 1240 kg
