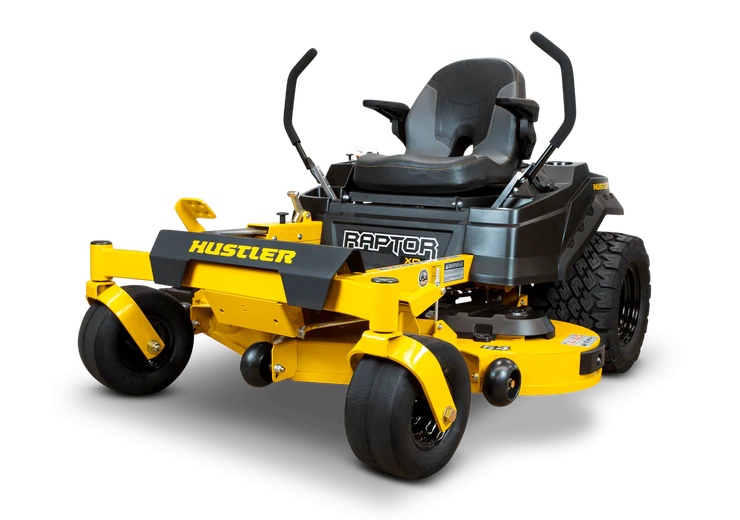

Hustler Raptor XD 54" Zero-Turn Mower

by Hustler
Contact for Pre-Order
Original price $11,999.00
Original price - Original price
Original price
Current price $11,999.00
-
Current price

DETAILS

The New Raptor® XD is a low profile, heavy-duty premium residential zero-turn mower. With an all new wider stance and single fully welded frame, this machine is built like a tank, but drives like a sports car. Featuring all the exclusives that you can only find on a Hustler machine, the Raptor® XD is a hard act to beat!

FEATURES

  • Fully fabricated steel deck
  • Hustler exclusive 20” BigBite drive tires and 13" front castors
  • Premium Hydro-Gear 2800 transmission for reliable and dependable operation
  • One piece welded tubular frame, not bolt together like inferior machines
  • Smooth Trak steering with automatic park brake system
  • Premium bolstered high-back seat with armrests and built-in lumbar support
  • Fast, professional zero turn productivity
  • Premium Kawasaki commercial grade engine

SPECIFICATIONS

All specifications are subject to change without notice.
  • Domestic Warranty

    3 Year - 300 Hour Domestic
  • Commercial Warranty

    3 Year - 300 Hour Commercia
  • Engine (cc)

    726 cc
  • Engine

    Kawasaki FR691V
  • Horsepower

    23.0 hp (17.2kW) @ 3600 rpm (Please Note: Horsepower rating as tested to SAE J1995 Standards.)
  • Fuel Capacity

    11.36 L
  • Blade Length

    47cm x 3 Blades
  • Dry Weight

    296kg
  • Fuel

    Unleaded (see engine manufacturers specifications)
  • Drive System

    Dual hydrostatic. Hydro-Gear ZT2800 integrated hydrostatic zero-turn transaxles
  • Ground Speed - Forward

    Infinitely variable 0-12.1km/h
  • Ground Speed - Reverse

    0-6.4 km/h
  • Brakes

    Hydrostatic dynamic braking. Parking: Patented automatic park brake system.
  • Caster Tyres

    13 x 6.5 , smooth tread
  • Tyres - Drive

    Exclusive 20 x 12 - 12 BigBite tyre
  • Seat

    Premium bolstered high-back seat with armrests and built-in lumbar support
  • Hour Meter

    Standard
  • ROPS

    **No ROPS**
  • Seat Suspension

    Seat suspension springs are standard
  • Height

    111cm
  • Width

    149cm (with discharge chute raised)
  • Width (tyre-to-tyre)

    123cm
  • Deck System

    Side-Discharge: 54" cut. 3 Blades, deck is suspended at two points at the rear and two in front. Includes deck-mounted anti-scalp wheel(s) to improve flotation in rolling and uneven terrain.
  • Cutting Widths

    54" (137cm)
  • Deck Lift

    Foot Operated 4 point deck lift system
  • Deck Construction

    11 ga, 3.0 mm welded steel with 7 ga, 4.5 mm support plate double welded onto spindle mount areas. Solid 9.5 mm x 25.4 mm steel bars reinforce impact areas on trim edges. Steel deck housing is 114.3 mm deep to provide room for high-capacity mowing.
  • Cutting Height(s)

    1.5" (3.8cm) to 4.5" (11.5cm) in 1/4" (6mm) increments
  • Blade(s)

    3 x Heavy-duty, heat treated blades. 18.5" X 2.50 X .20"
  • Blade Tip Speed

    18,800fpm
  • Discharge Chute

    High density, rubberised
  • Transmission

    Hydro-Gear ZT2800
  • Kit - Mulch

    Not Standard - Available Option
  • Grass Catcher

    Not Standard - Accessory Available
  • Length

    181cm
