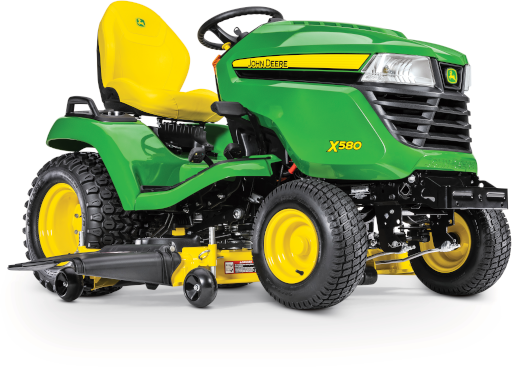

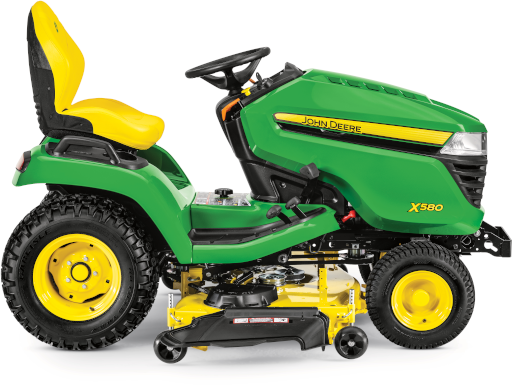

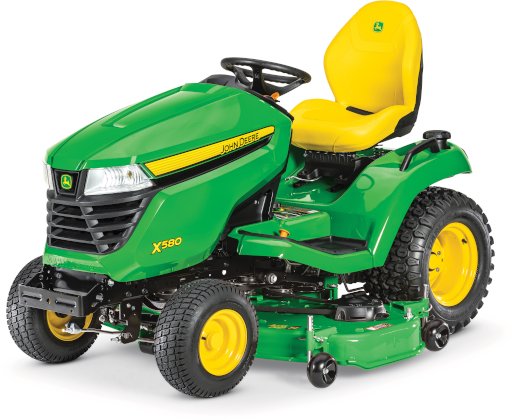

John Deere X580 Tractor with 54 Accel Deep (54A) Mower Deck
Engine is smooth running and reliable V-twin air-cooled design
Large 726 cc displacement
V-twin air-cooled design
Large 16.6-L capacity fuel tank
The 54-in. (137-cm) Accel Deep™ (54A) Mower Deck cuts clean and is versatile
- 4.83-in. (12.3-cm) depth throughout the entire deck shell for optimum mowing, mulching, and bagging performance
An optional 247L rear bagger material collection system (MCS) is available. It provides an efficient means of collecting grass clippings and leaves.
Four-year or 500-hour bumper-to-bumper warranty is standard
An exclusive 4-year or 500-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere X500 Series Tractors.
- The warranty is hassle free, with one company handling all of the paperwork.
Power steering and hydraulic lift enable easy operation
Hydraulic power steering is standard equipment.
Convenient hydraulic lift lever makes raising and lowering the mower or implement easy.
Hydrostatic transaxle has traction assist
When combined with the foot controls, the hydrostatic transmission functions similarly to that of an automatic transmission in an automobile, so the term automatic is often used to describe it.
Cruise control is standard equipment.
Traction assist is standard equipment.
Lever-action or electric one-touch MulchControl™ options are available for extra mowing convenience
Lever-action or electric one-touch MulchControl attachment is available for Accel Deep™ 42-in. (107-cm) (42A), 48-in. (122-cm) (48A), and 54-in. (137-cm) (54A) Mower Decks used on ZTrak™ Mowers and X300 and X500 Select Series™ Tractors.
Electric one-touch MulchControl has the additional advantage of being controlled from the tractor seat by a switch on the dash to operate an electric actuator that moves the baffle to close off the discharge area of the mower deck.
Control and display functions are easy to identify and convenient to use
The instrument display has the look and feel of a modern automobile.
- Hourmeter makes it easy to tell when oil changes and other maintenance should be performed.
- Electronic fuel gauge provides real-time fuel level information.
- A tachometer graphically displays engine speed.
- Target-zone graphics inform the operator of the engine speed range to use for best cut quality.
Convenient hydraulic lift lever makes raising and lowering the mower or implement easy.
Frame is formed from thick steel and welded for reliability
The frame is made of heavy-duty formed and welded steel, reinforced in critical areas for even greater strength:
- Frame is formed from 12-gauge, 0.105-in. (2.66-mm) thick material.
- Front bumper and hitch plate are formed from 0.25-in. (6.4-mm) steel and complete the frame assembly.
- Front bumper can support up to four 42-lb (19-kg) Quik-Tatch weights.
- Rear hitch plate can support up to four 42-lb (19-kg) Quik-Tatch weights.
- X584 requires an optional rear weight bracket.
A heavy-duty equipment mounting system is used.
Modern styling is eye appealing and functional
Two headlights give excellent visibility
High-quality headlights make evening work easier and safer:
- Headlights are designed to provide an optimum lighting pattern for mowing and snow removal.
Operator station is comfortable and convenient
The 15-in. (38-cm) open-back seat (X570, X580) features distinctive styling and is designed for comfort:
- Open-back design allows air circulation to keep the operator’s back cool and dry for a more comfortable ride.
- Hand grip at the top of the seat is conveniently located for use when tilting the seat up to protect it from the weather.
The 21-in. (53-cm) high-back seat (X584, X590) provides additional comfort and support for the operator.
- Seat features a suspension that is easily adjusted for the operator’s weight and height.
- Seat tilts forward to keep the seating surface out of the weather.
A 12-V outlet is standard equipment and provides a convenient plug-in for electrical equipment.
Serviceability is convenient with easy-open hood
The one-piece hood opens easily to permit checking and servicing the engine:
- Important service points are located within easy reach.
- A service-interval decal is provided inside the tractor hood for convenience when servicing the tractor.
A mower deck must be level side-to-side and properly adjusted front-to-rear to give the best cutting performance. A removable on-board deck-leveling gauge and a hex-key tool are provided to make adjustment.
