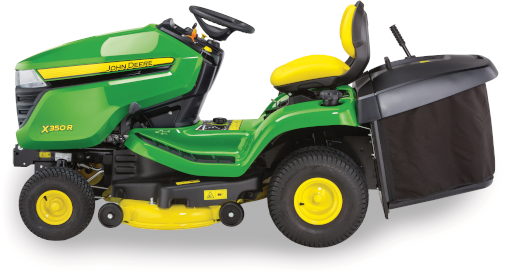

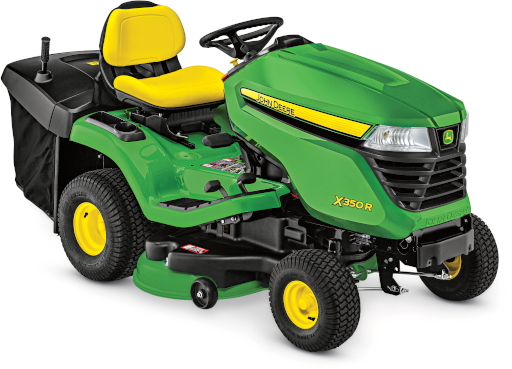

John Deere X350R Tractor with 42-in. Rear-Discharge Mower Deck
Engine is smooth-running and reliable V-twin air-cooled design
21.5-hp (16-kW) V-twin engine
The tractor is powered by a John Deere iTorque™ Power System, a combination of engine features and an exclusive hood design that provides superior lugging ability, even cooling, and durability.
A large 603-cc, 21.5-hp (16-kW) engine has plenty of power and torque for superior performance. The larger, more powerful engine also allows the engine in the rear-discharge tractor to be operated at a lower 3100-rpm speed for quieter operation.
- V-twin design:
- Excellent power and performance
- Easy starts
- Smooth operation

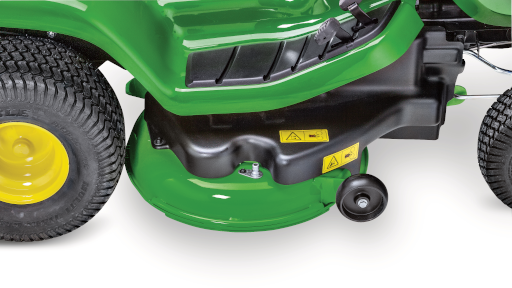

42-in. (107-cm) Rear-Discharge Rear-Collect Mower Deck cuts clean
The innovative design of the 42-in. (107-cm) Edge™ Rear-Discharge Deck combines the best features for reliability and superior performance when mowing, collecting, and mulching grass and leaves.
The mower deck is contoured and free of obstructions to ensure optimum cutting and bagging performance.
A wash port is provided on the mower deck. It can be used to supply water to the underside of the deck so it can be easily cleaned after use.
Optional rear deflector (BM25065) easily installs in place of hopper.

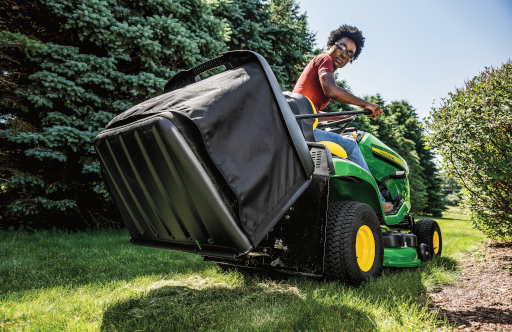

Rear hopper has large capacity and is easy to empty
The innovative design of the durable 300L rear hopper sets a high standard for collecting systems.
The hopper is made of durable materials and sealed to keep dust away from the operator.
Four-year or 300-hour bumper-to-bumper warranty is standard
An exclusive 4-year or 300-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere X300 Series Tractors.
*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.
Controls and display functions are easy to identify and convenient to use
The contoured dash has clean, attractive styling and ergonomic controls for easy use.
Display panel
Display has the look and feel of a modern automobile. A power-up sequence cycles lights and gauges to indicate they are working:
- Low-fuel light provides the operator with a noticeable warning when low on fuel.
- A tachometer graphically displays engine speed.
- Target-zone graphics inform the operator of the engine speed range to use for best cut quality.
Cruise control is standard equipment.
Frame is reliable heavy-duty welded steel
The frame is made of heavy formed and welded steel, reinforced in critical areas for even greater strength.
A standard rear hitch is included for pulling tow-behind equipment. Simply lift off the hopper and the hitch is ready to use.
Modern styling is eye-appealing and functional
Two high-quality headlights give excellent visibility
Optimum lighting pattern
Headlights are standard equipment on all models:
- The headlights are designed to provide an optimum lighting pattern for mowing and snow removal.
Operator station is comfortable and convenient
An open-back 15-in. (38-cm) high-back seat provides a comfortable, smooth ride and good support for the operator.
The seat suspension is adjustable, without tools, for the weight of the operator.
-
- Allows fine-tuning of the suspension for the operator’s weight
Removable plug for optional 12-V outlet
A removable plug on the console, in front of the operator, provides a convenient location for the optional 12-V outlet and makes installation easy.
Serviceability convenience is built in
The one-piece hood opens easily to permit checking and servicing the engine.
The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.
The hopper is easily removed by using the rear handle.
Chute is easily removed and cleaned if necessary.
